Old 06-15-2007, 08:30 AM   #1
bikenlady
DC Crew

Posts: 17
Member #60432
Member since: May 2007
Location: portland oregon

My Corvette(s)
1980 custom

Thanks: 0
Thanked 0 Times in 0 Posts
Question c4 rear end in a c3?

I had my 80 custom vette stolen, and recently recovered. it is in need of alot of attention. I am handing some of the custom work over to a friend of mine who owns Outlaw Customs in Portland Oregon. I have decided to have him widen the body 6 to 7 inches on each side. My homework he gave my is to find out if anyone has put a c4 rear end assy in a c3 and how much wider the c4 is to a c3. He told me the body could be done rather easely but he wanted to get the wheels as wide as I wanted first and he would fit the body to look right with the wheels, I want tires as close to 27inches tall and 13 to 14 inches wide so the offset would be to much with the stock width axles. can some one give me some info so I look like I know what I am talkin about when I go back to his shop. Thank You
Debi
bikenlady is offline   Reply w/quote Quick reply to this message
Sponsored Links
Advertisement

Old 06-15-2007, 09:13 AM   #2
Turbo84
DC Crew

Turbo84's Avatar

Posts: 583
Member #54556
Member since: Dec 2006
Location: KCMO

My Corvette(s)
1969 427 5spd, 1984 turbo 6spd

Thanks: 0
Thanked 8 Times in 7 Posts
A six or seven inch body width increase would be about right. I put a C4 suspension on my C3 frame, but I narrowed the suspension to fit the C3 trackwidth. I seem to recall that I cut about two and a half to three inches off each side to get the C4 suspension to sit where I could put stock C3 wheels in the wheel wells. A stock width C4 suspension should let you put some wide wheels on the car, as you now have the option of widening the wheels in and out.
Good luck, and be sure to post some pictures!
Turbo84 is offline   Reply w/quote Quick reply to this message
Old 06-15-2007, 09:51 AM   #3
Chi Lyon
DC Crew

Chi Lyon's Avatar

Posts: 120
Member #59903
Member since: May 2007
Location: Naperville, IL

Thanks: 0
Thanked 0 Times in 0 Posts
Thumbs up! Awesome car!!

Sorry about your car, that sux!!!. I have no knowledge of putting a C4 rear on a C3. Is that the car that was stolen in your pics? That rear window is the sweetest thing i've ever seen done to a C3!!!!! I've always loved the 63 rear window, and very much disliked the 1980 bubble. Did you take that from a 63 or did you have it fabricated? How much did it run you? Is your car in any decent shape after the theft? How did that happen? Sorry again I can't help you out with the question. I'm sure there is someone here who has done that job, and can fill you in.
ThanX
Chi Lyon is offline   Reply w/quote Quick reply to this message
Old 06-15-2007, 05:21 PM   #4
Show
DC Crew

Show's Avatar

Posts: 673
Member #57720
Member since: Feb 2007
Location: Lawson Mo,USA

My Corvette(s)
TT 1971 vert on C-4 suspension

Thanks: 0
Thanked 1 Time in 1 Post

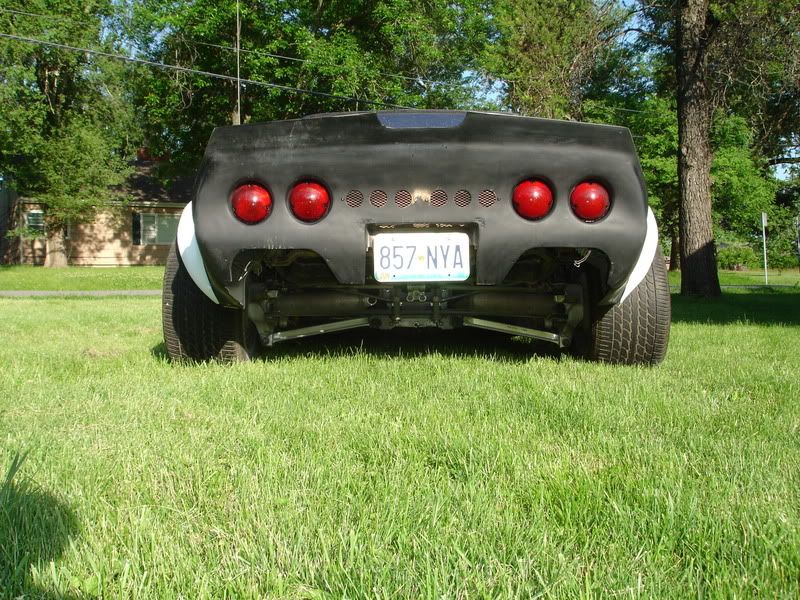

Here ya go!

Its a stock width C-4.However the wheels are @12" wide and deepset.
Show is offline   Reply w/quote Quick reply to this message
Old 06-15-2007, 07:27 PM   #5
84rzv500r
DC Crew

Posts: 548
Member #57512
Member since: Feb 2007
Location: Elmira, NY USA

My Corvette(s)
1971 Can-Am Widebody

Thanks: 0
Thanked 0 Times in 0 Posts
C3 with 28" tall 325's on 11 inch with 4 inch backspace...

Go Wiiiiiiiiiiiddddddde








84rzv500r is offline   Reply w/quote Quick reply to this message
1971 Can-Am, 502 Ramjet, hookers, 14 pt roll cage, gusseted frame, ROD 6 speed, 3.08 rear, dual friction clutch, Lakewood, Wilwood brakes, VB&P sport hub/rotors Hydraboost, Steeroids, Tubular A-arms, VanSteel HD offset Trailing arms w/Johnny Joints, custom 6 link, 3" telescoping halfshafts, modified dragvette drive & halfshaft saftey loops, 16 gallon fuel cell, basset wheels front 15x10x4 with nitto 555r 275/50VR15's and rear 15x12x4.5 with nitto 555r 325/50VR15's, Ultrashield seats, Stewart-Warner clocks, 16" spal fan, Radius Tooth Belts W/billet pulleys....
Old 06-15-2007, 07:38 PM   #6
TwinTurbo
DC Crew

TwinTurbo's Avatar

Posts: 1,873
Member #152
Member since: Jan 2003
Location: The Netherlands

My Corvette(s)
1982 Twin Turbo 6 speed Coupe

Thanks: 0
Thanked 0 Times in 0 Posts
80 eh...almost bolt in..well...sorta LOL



















TwinTurbo is offline   Reply w/quote Quick reply to this message
...get out of the way old hag, you're messing up my cornering
Old 06-15-2007, 08:42 PM   #7
CorvDave01
DC Crew

CorvDave01's Avatar

Posts: 322
Member #60648
Member since: May 2007
Location: Salina / Kansas/ USA

My Corvette(s)
1976 L82

Thanks: 0
Thanked 0 Times in 0 Posts
What rearend is stronger? C4 or C3?
CorvDave01 is offline   Reply w/quote Quick reply to this message
Dave
'76 L82 (not stock)
Old 06-15-2007, 09:30 PM   #8
bikenlady
DC Crew

Posts: 17
Member #60432
Member since: May 2007
Location: portland oregon

My Corvette(s)
1980 custom

Thanks: 0
Thanked 0 Times in 0 Posts
thankyou for the info, nice pics , and yes the white 80 with flames is the pic before she was stolen and the pic in gray and silver was what it looked like when recovered, the 63 splitwindow was cut off and a stock backglass was just bondoed in. I think to try and hide it, the 63 split window was made from factory replacement moulds it came in three pieces lt rt and window surround. Jon Stewart from Outlaw Customs widened each window 2 1/2" to get the proper look. the pic does not do it justice but it is the only painted one I had before it was stolen. If any one is interested I have lots of pics from start to primer but dont know how to get them small enough to post, and I can have Jon answer any technical ? as He is a good friend and loves to help. Thank You
Debi
bikenlady is offline   Reply w/quote Quick reply to this message
Old 06-16-2007, 01:46 AM   #9
mrvette
Account Disabled.

Posts: 3,855
Member #59755
Member since: Apr 2007
Location: Orange Park Florida

My Corvette(s)
'72 hotrod custom

Thanks: 0
Thanked 0 Times in 0 Posts
The comment above of cutting the drive shafts/width by 2.5 inches sounds about right, as that is the thickness of my wheel adaptors putting '97 vette rims on the C3, keeping same centerline that is....
mrvette is offline   Reply w/quote Quick reply to this message


GENE

IT is not the SIZE of the problem, but the perfection of the solution......

Airheads are immune to logic and common sense.

www.mrvette.shutterfly.com
Old 06-16-2007, 02:15 PM   #10
Ttime
Account Disabled.

Posts: 608
Member #43331
Member since: Feb 2006
Location: Asheville, NC

My Corvette(s)
1993, 2004 Z06

Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by bikenlady View Post
I had my 80 custom vette stolen, and recently recovered. it is in need of alot of attention. I am handing some of the custom work over to a friend of mine who owns Outlaw Customs in Portland Oregon. I have decided to have him widen the body 6 to 7 inches on each side. My homework he gave my is to find out if anyone has put a c4 rear end assy in a c3 and how much wider the c4 is to a c3. He told me the body could be done rather easely but he wanted to get the wheels as wide as I wanted first and he would fit the body to look right with the wheels, I want tires as close to 27inches tall and 13 to 14 inches wide so the offset would be to much with the stock width axles. can some one give me some info so I look like I know what I am talkin about when I go back to his shop. Thank You
Debi

If you do go with the C4 rear, you might consider the D44 rear that came with the cars with a standard. There a lot stronger than the D36 rears.
Ttime is offline   Reply w/quote Quick reply to this message
Old 06-16-2007, 02:29 PM   #11
TwinTurbo
DC Crew

TwinTurbo's Avatar

Posts: 1,873
Member #152
Member since: Jan 2003
Location: The Netherlands

My Corvette(s)
1982 Twin Turbo 6 speed Coupe

Thanks: 0
Thanked 0 Times in 0 Posts
not all manual c4s have a d44 (actually it's a super dana 44, the 80-82 is a dana 44. the super dana 44 uses a dana 60 sized 1.625" 29 spline pinion, same guts as the viper super dana 44 diff) all 84s have a D36. Also, not all sD44s are equal strong, the early cases although heavier are stronger than the later ones.
TwinTurbo is offline   Reply w/quote Quick reply to this message
...get out of the way old hag, you're messing up my cornering
Old 06-17-2007, 08:26 AM   #12
Ttime
Account Disabled.

Posts: 608
Member #43331
Member since: Feb 2006
Location: Asheville, NC

My Corvette(s)
1993, 2004 Z06

Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by TwinTurbo View Post
not all manual c4s have a d44 (actually it's a super dana 44, the 80-82 is a dana 44. the super dana 44 uses a dana 60 sized 1.625" 29 spline pinion, same guts as the viper super dana 44 diff) all 84s have a D36. Also, not all sD44s are equal strong, the early cases although heavier are stronger than the later ones.
Good to know, thanks . I remember hearing about '84's having the D36, I forgot about that detail .

I would still take a D44 over a D36 and that was my original point.

Do you have cast numbers for the older D44? Where can I read up on the different D44's made for the C4? I hope I'm not being a pain in the ass , but this is the first time I heard of different D44's . I'm curious because I'm in the middle of modifying my C4 (1993)and want to know if my D44 and ZF6 can handle about 400 to 450 Hp/tq. I was told that both can withstand around 500 hp/tq easily.

Anyway, Sorry to hi-jack this thread.

Ttime is offline   Reply w/quote Quick reply to this message
Old 06-17-2007, 08:36 AM   #13
TwinTurbo
DC Crew

TwinTurbo's Avatar

Posts: 1,873
Member #152
Member since: Jan 2003
Location: The Netherlands

My Corvette(s)
1982 Twin Turbo 6 speed Coupe

Thanks: 0
Thanked 0 Times in 0 Posts
I have a super dana 44 in mine, just the diff though the rest is a home built double a arm IRS

The diff and trans will handle that, no problem. I don't know why the ZF is rated 450lbs for the black tag (made in Germany and some are stronger than others) and less for the blue tags (made in USA) and they are all less than a TKO 600. The TKO is a puny little transmission, the ZF is so much larger and everything's bulkier, kind of weird. I have a ZF6 in my car. I have a 90 black tag, the diff is an 86 super dana 44.

I don't have the casting numbers but there's a difference in the cases, they are easily recognised by the c beam mounting pad and some other differences. I'll post a pic when I get home, I think I have a comparison pic on my system there.

For more zf info, check out Bill Boudreau's site: http://www.zfdoc.com
TwinTurbo is offline   Reply w/quote Quick reply to this message
...get out of the way old hag, you're messing up my cornering
Old 06-17-2007, 08:56 AM   #14
Ttime
Account Disabled.

Posts: 608
Member #43331
Member since: Feb 2006
Location: Asheville, NC

My Corvette(s)
1993, 2004 Z06

Thanks: 0
Thanked 0 Times in 0 Posts
Thumbs up!

Quote:
Originally Posted by TwinTurbo View Post
I have a super dana 44 in mine, just the diff though the rest is a home built double a arm IRS

The diff and trans will handle that, no problem. I don't know why the ZF is rated 450lbs for the black tag (made in Germany and some are stronger than others) and less for the blue tags (made in USA) and they are all less than a TKO 600. The TKO is a puny little transmission, the ZF is so much larger and everything's bulkier, kind of weird. I have a ZF6 in my car. I have a 90 black tag, the diff is an 86 super dana 44.

I don't have the casting numbers but there's a difference in the cases, they are easily recognised by the c beam mounting pad and some other differences. I'll post a pic when I get home, I think I have a comparison pic on my system there.

For more zf info, check out Bill Boudreau's site: http://www.zfdoc.com
Again, great information! Thank you

I love this place. Lot's of good information here without the arrogant attitudes that other sites have.

I heard a C beam upgrades are good too, I need to use the search feature. I probably should ask this stuff in the C4 section so I don't piss anybody off .
Ttime is offline   Reply w/quote Quick reply to this message
Old 06-17-2007, 09:00 AM   #15
TwinTurbo
DC Crew

TwinTurbo's Avatar

Posts: 1,873
Member #152
Member since: Jan 2003
Location: The Netherlands

My Corvette(s)
1982 Twin Turbo 6 speed Coupe

Thanks: 0
Thanked 0 Times in 0 Posts
zfdoc has those also, and nice c beam brackets to make it a big driveshaft loop
TwinTurbo is offline   Reply w/quote Quick reply to this message
