Old 07-09-2016, 09:00 PM   #286
AcidGypsy
DC Crew

AcidGypsy's Avatar

Posts: 339
Member #130578
Member since: Aug 2013
Location: Detroit, Michigan

My Corvette(s)
1968

Thanks: 19
Thanked 64 Times in 58 Posts
Quote:
Originally Posted by Marks76ray View Post
Have a question for you Acid, I was looking at your R100 seat deminsions online. I have found some aftermarket seats that are 1 inch taller and 1 inch wider than yours. Do you think these would fit. The ones I'am looking at are 20.5 wide and 37.5 tall. BTW how's the build going.



Mark
Mark,
Did some measurements. From a height standpoint, if you are 'hardmounting' the seats to the floor I think you would be OK. This is also dependent on how tall you are 1" taller in the seat would make it too tight on me (6'2").

The 'no go' for me is the width. I measured the center park brake outside edge to the vertical wall on the rocker inner. In my car it was 20". This would mean that your seat would always touch the center console. It's too hard for me to tell without the door & door pad installed how much contact would be in play to the bolster and the door pad (if any).

If its me, that seat is too wide.
Even with mine, I removed the interior side 'dump' handles on both the driver and passenger seat to gain another 1/4" of clearance to the console! I needed everything I can get.

The photos below show the seat in close to it's end position. very close on both sides.

Hope this help's Mark. Good Luck!!!

3/8" clearance on the inside. Notice the removal of the seatback tilt 'dump' handle:


And bolster clearance to the vertical wall is about 1". total width of the seat was 19 1/4":
AcidGypsy is offline   Reply w/quote Quick reply to this message
Sponsored Links
Advertisement

Old 07-09-2016, 09:03 PM   #287
AcidGypsy
DC Crew

AcidGypsy's Avatar

Posts: 339
Member #130578
Member since: Aug 2013
Location: Detroit, Michigan

My Corvette(s)
1968

Thanks: 19
Thanked 64 Times in 58 Posts
C3 Center Console Gauges

While I was out in the garage at dark, snapped a shot of the gauges lit up. Looking good!

AcidGypsy is offline   Reply w/quote Quick reply to this message
Old 07-10-2016, 07:47 PM   #288
AcidGypsy
DC Crew

AcidGypsy's Avatar

Posts: 339
Member #130578
Member since: Aug 2013
Location: Detroit, Michigan

My Corvette(s)
1968

Thanks: 19
Thanked 64 Times in 58 Posts
Wiring still moving along.

Check engine light works - (thanks Josh for the help).

Park brake alert light works - (modified to LED).

Shifter plate has been modified. Pot metal quality was poor. Sanded down & removed fiber optic scripts and sanded smooth. Just need to shoot it with body color.

Shifter boot was custom built. Not mounted but looks good.

Like others, custom modified shifter locator using stock parts.

Steve.





AcidGypsy is offline   Reply w/quote Quick reply to this message

Old 07-11-2016, 06:30 AM   #289
Neil B
DC Crew

Posts: 148
Member #160018
Member since: Sep 2015
Location: Tampa FL

My Corvette(s)
69 Corvette

Thanks: 0
Thanked 13 Times in 13 Posts
Quote:
Originally Posted by AcidGypsy View Post
Wiring still moving along.

Check engine light works - (thanks Josh for the help).

Park brake alert light works - (modified to LED).

Shifter plate has been modified. Pot metal quality was poor. Sanded down & removed fiber optic scripts and sanded smooth. Just need to shoot it with body color.

Shifter boot was custom built. Not mounted but looks good.

Like others, custom modified shifter locator using stock parts.

Steve.





Looks really good. I'm paying close attention on the interior work for any tips/tricks. You were able to adapt the stock shift console plate to the T56 shifter position?
Neil B is offline   Reply w/quote Quick reply to this message
Old 07-11-2016, 05:43 PM   #290
AcidGypsy
DC Crew

AcidGypsy's Avatar

Posts: 339
Member #130578
Member since: Aug 2013
Location: Detroit, Michigan

My Corvette(s)
1968

Thanks: 19
Thanked 64 Times in 58 Posts
Quote:
Originally Posted by Neil B View Post
Looks really good. I'm paying close attention on the interior work for any tips/tricks. You were able to adapt the stock shift console plate to the T56 shifter position?
Neil,

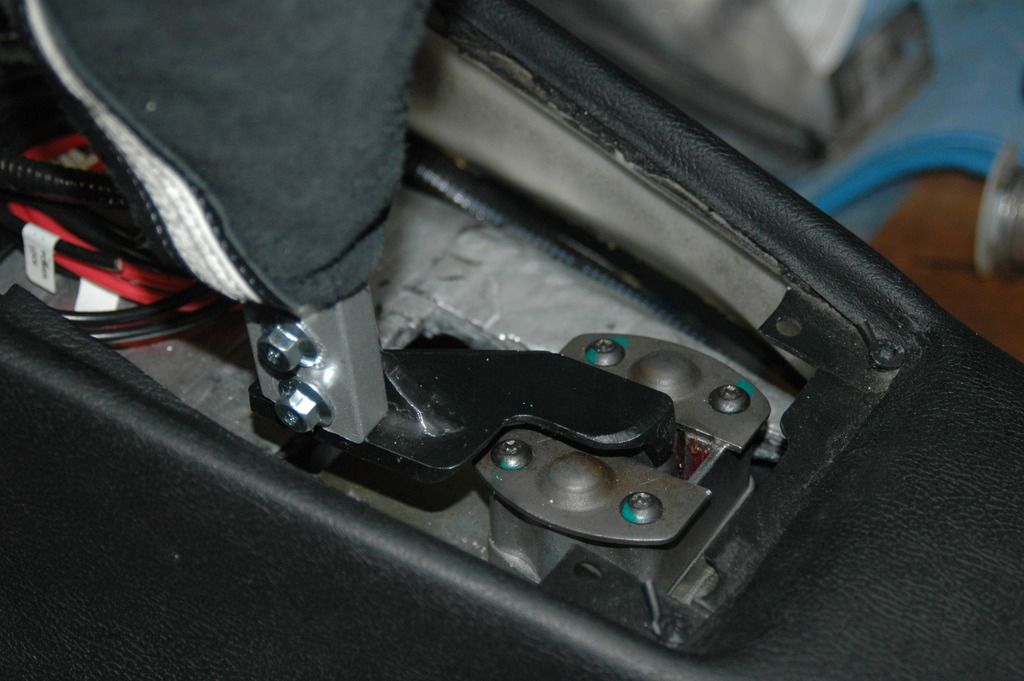

Yes. The black 'diving board' shown in the photo is the modified piece I made.

The first pic shows the factory shift plate with the modified shifter installed.

If you are trying to keep the factory shifter position, modification is necessary. Otherwise, the shifter sits at the very bottom of the center console & would look out of position, IMO.

Steve
AcidGypsy is offline   Reply w/quote Quick reply to this message
Old 07-12-2016, 08:54 PM   #291
Marks76ray
DC Crew

Marks76ray's Avatar

Posts: 1,437
Member #87984
Member since: Jul 2009
Location: Tupelo, MS USA

My Corvette(s)
1976 Stingray

Thanks: 156
Thanked 90 Times in 85 Posts
Thanks for the measurements Steve, that helps. One more question, how comfortable are the Sparco seats you have. I understand you haven't put any driving time in but what are your first impressions and again thanks very much. Your build is looking great keep up the good work.




Mark
Marks76ray is offline   Reply w/quote Quick reply to this message
My Build Link https://www.digitalcorvettes.com/foru...d.php?t=148376

My Picture Link
http://www.supermotors.net/users/Busterbronco

I find a little piece of sanity through my vette project, other than that I rely on Jesus.

re·ly-Definition of

Depend on with full trust or confidence.
synonyms: depend on, place reliance on;
Old 07-13-2016, 04:30 PM   #292
AcidGypsy
DC Crew

AcidGypsy's Avatar

Posts: 339
Member #130578
Member since: Aug 2013
Location: Detroit, Michigan

My Corvette(s)
1968

Thanks: 19
Thanked 64 Times in 58 Posts
Mark,

Seats are VERY supportive. Side bolsters provide plenty of lateral support, almost to a fault. Put this way, I think that I could do 70mph on a cloverleaf ramp and not move at all!

Only concern I have would be long rides 200 miles or more. Seat is restrictive enough that shifting around might not be much of an option.

Build quality is decent, there is some wrinkling in the vinyl on the side bolsters that bug me a little. Corbeau has better quality but at almost twice the cost.

Last item to keep in mind is that the vinyl version of the seat is the ONLY one with the horizontal pattern on the seatback. the cloth versions with the color accents do not have the pattern in the seatback and to me, take a bit of detail and appeal out of the seat.

As much as it appears that the above comments are more negative then positive, I would buy them again if I had it to do over. they offer great looks, support & comfort at a better cost then the corbeau's. They are one of the few seats that fit in our cars!

hope this helps.
Steve
AcidGypsy is offline   Reply w/quote Quick reply to this message
The Following User Says Thank You to AcidGypsy For This Useful Post:
Marks76ray (07-13-2016)
Old 07-17-2016, 06:23 PM   #293
AcidGypsy
DC Crew

AcidGypsy's Avatar

Posts: 339
Member #130578
Member since: Aug 2013
Location: Detroit, Michigan

My Corvette(s)
1968

Thanks: 19
Thanked 64 Times in 58 Posts
C3 Corvette LSx First Start up!

There is no way I can put this into words. Only those who have done this before and those who aspire to do so can understand how this feels!

Steve

www.youtube.com/watch?v=nwhTyEb6sW8

Last edited by AcidGypsy; 09-06-2016 at 05:15 AM.
AcidGypsy is offline   Reply w/quote Quick reply to this message
Old 07-17-2016, 11:02 PM   #294
7TRoadster
DC Crew

7TRoadster's Avatar

Posts: 1,773
Member #106320
Member since: May 2010
Location: Kennewick, WA

My Corvette(s)
1970 Roadster, Mast Motorsports LS7, TKO 600, SS Frame, C4 suspension

Thanks: 44
Thanked 162 Times in 144 Posts
That is awesome!!!!!!!!!!!

Congrats!!!!!!

From now on motivation is available by twisting the key.
7TRoadster is online now   Reply w/quote Quick reply to this message
Old 07-18-2016, 03:09 AM   #295
Pops71lives
DC Crew

Pops71lives's Avatar

Posts: 726
Member #132985
Member since: Oct 2013
Location: Goshen/Indiana/USA

My Corvette(s)
1971

Thanks: 245
Thanked 106 Times in 96 Posts
Well done sir!!
Pops71lives is offline   Reply w/quote Quick reply to this message
Old 07-18-2016, 06:11 AM   #296
Marks76ray
DC Crew

Marks76ray's Avatar

Posts: 1,437
Member #87984
Member since: Jul 2009
Location: Tupelo, MS USA

My Corvette(s)
1976 Stingray

Thanks: 156
Thanked 90 Times in 85 Posts
Awesome, give yourself a pat on the back, job well done sir.

Marks76ray is offline   Reply w/quote Quick reply to this message
My Build Link https://www.digitalcorvettes.com/foru...d.php?t=148376

My Picture Link
http://www.supermotors.net/users/Busterbronco

I find a little piece of sanity through my vette project, other than that I rely on Jesus.

re·ly-Definition of

Depend on with full trust or confidence.
synonyms: depend on, place reliance on;
Old 07-18-2016, 04:33 PM   #297
Richard454
DC Crew

Richard454's Avatar

Posts: 1,319
Member #43340
Member since: Feb 2006
Location: Atlanta, GA

My Corvette(s)
71 V12 restomod vert (Plan A) 73 L82 4 speed (Plan B)

Thanks: 10
Thanked 219 Times in 190 Posts
Quote:
Originally Posted by AcidGypsy View Post
There is no way I can put this into words. Only those who have done this before and those who aspire to do so can understand how this feels.
Congradulations!!!

I too have done the "wahoos" yell!!!
Richard454 is offline   Reply w/quote Quick reply to this message
Old 07-18-2016, 04:42 PM   #298
AcidGypsy
DC Crew

AcidGypsy's Avatar

Posts: 339
Member #130578
Member since: Aug 2013
Location: Detroit, Michigan

My Corvette(s)
1968

Thanks: 19
Thanked 64 Times in 58 Posts
Quote:
Originally Posted by 7TRoadster View Post
That is awesome!!!!!!!!!!!

Congrats!!!!!!

From now on motivation is available by twisting the key.
Quote:
Originally Posted by Pops71lives View Post
Well done sir!!
Quote:
Originally Posted by Marks76ray View Post
Awesome, give yourself a pat on the back, job well done sir.

Quote:
Originally Posted by Richard454 View Post
Congradulations!!!

I too have done the "wahoos" yell!!!
Thanks Guys! 24 hours later and still riding the high!

Steve

www.youtube.com/watch?v=nwhTyEb6sW8
AcidGypsy is offline   Reply w/quote Quick reply to this message
Old 07-18-2016, 06:06 PM   #299
slofut
DC Crew

slofut's Avatar

Posts: 1,834
Member #119762
Member since: Sep 2012
Location: Home of grits and gnats, Moultrie, Ga.

My Corvette(s)
1971 base conv. GTO LS1, T56.

Thanks: 413
Thanked 126 Times in 117 Posts
That is friggin awesome!! Damn it's loud with those open headers. Congrat's, man I can't wait 'til I'm at that point.
slofut is offline   Reply w/quote Quick reply to this message
Old 07-19-2016, 02:17 PM   #300
Neil B
DC Crew

Posts: 148
Member #160018
Member since: Sep 2015
Location: Tampa FL

My Corvette(s)
69 Corvette

Thanks: 0
Thanked 13 Times in 13 Posts
Awesome! That's a huge milestone. A big congrats to you!
Neil B is offline   Reply w/quote Quick reply to this message
