Another home made Rack and Pinion

First off I need to give a special thanks to, Vette427 sbc, 69myway,
MRvette, and all other forum members that I may be forgetting.
To do a job like this it takes time which is what I have very little
of but I finely got this far.

I started out getting all my need to know info from the greet
forum members
we have here, thanks guys.

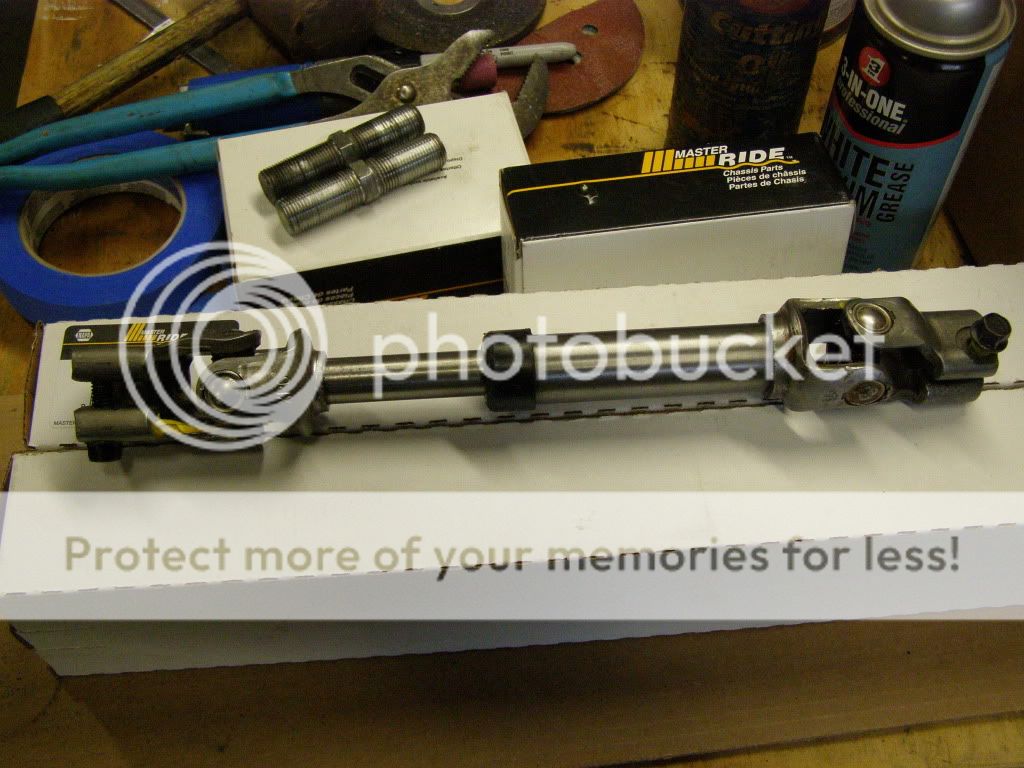

I bought a 98 Grand Am rack and pinion with both brackets and
tie rods. and a 2004 Malibu steering shaft from the local junk yard.



I then bought new Inner and outer tie rods for a Grand Am, They work
out well.

After tearing out the old system, I built the bracket to hold the
rack. I used the original hole in the frame to bolt in the new setup.
The material I used for the brackets is 3/16 flat steel.





I then took the steering column out of the car and altered the
end to except the Malibu steering stem.





Then reinstalled the column and the steering shaft into the car along with the rack.

I was getting a little resistance when turning the wheel every
1/2 turn so I had to collapse the column alittle, will I went a little
to far and can't pull it back down so I will either extend the steering
shaft or I will get a longer setup.


Now I built a center bracket out of 3/16 flat steel cut two pieces
2'' wide by 5'' long welded it at a 75 to 80 degree angle, drilled
for the mounting and tie rod bolts, and installed it and the tie rods.





Every thing is in and looks like it will give me no problem. I am
taking most of this back apart to replace some hard ware and
I am tearing out the control arms to put new bushings and ball
joints in. after all this is done I will align it and give a post on
how it performs and what, if any changes I make. I also have to get hoses and I think I will get them from speed direct for
$62 for both hoses.

Thanks to all who has helped.

For right hand drive vehicles, See Frank A's build at post #90

Riggs.

Last edited by riggs 74; 04-08-2011 at 03:11 PM.
riggs 74 is offline   Reply w/quote Quick reply to this message
Sponsored Links
Advertisement

Old 01-03-2010, 08:06 PM   #2
iburke
Sir Dude

iburke's Avatar

Posts: 17,444
Member #6081
Member since: Dec 2003
Location: St Joseph MO.

My Corvette(s)
1971 T-Top

Thanks: 38
Thanked 73 Times in 51 Posts
Looking good...
iburke is offline   Reply w/quote Quick reply to this message
If life gets any better, I don't know if I can handle it.
Old 01-03-2010, 08:17 PM   #3
phantomjock
DC Crew

phantomjock's Avatar

Posts: 407
Member #90013
Member since: Aug 2009
Location: Redneck Riveria Deployed - Returned! 26 MAR 11

My Corvette(s)
1978 - original owner

Thanks: 12
Thanked 17 Times in 17 Posts
Quote:
Originally Posted by riggs 74 View Post
riggs74/P1030721.jpg[/IMG]
....
Now I built a center bracket out of 3/16 flat steel cut two pieces
2'' wide by 5'' long welded it at a 75 to 80 degree angle, drilled
for the mounting and tie rod bolts, and installed it and the tie rods.
....

Every thing is in and looks like it will give me no problem. I am
taking most of this back apart to replace some hard ware and
I am tearing out the control arms to put new bushings and ball
joints in.
Riggs.
Wow - That seems fast!

While you have it all apart - it would be realy cool if you could:
Measure,
diagram, or
sketch the brackets and dimensions.

Would be VERY helpful in building my bracket (maybe others too.)

Like your scrounging for the other bits too. You'll be in this for under 500 I bet. Maybe 1/2 that? Fine work. Thanks for sharing the pics - very helpful too.

TIA , and
Cheers - JIm
phantomjock is offline   Reply w/quote Quick reply to this message

Old 01-03-2010, 08:26 PM   #4
rtj

rtj's Avatar

Posts: 4,075
Member #52011
Member since: Oct 2006
Location: orlando fl usa

My Corvette(s)
75/502, C6 Z06, 70 ProStreet

Thanks: 4
Thanked 45 Times in 44 Posts
Good job. You can run these as manual units too, right?
rtj is offline   Reply w/quote Quick reply to this message
Old 01-03-2010, 08:57 PM   #5
riggs 74
DC Crew

riggs 74's Avatar

Posts: 1,301
Member #78208
Member since: Dec 2008
Location: ohio, springfield

My Corvette(s)
74 vette

Thanks: 16
Thanked 54 Times in 54 Posts
Quote:
Originally Posted by phantomjock View Post
Wow - That seems fast!

While you have it all apart - it would be realy cool if you could:
Measure,
diagram, or
sketch the brackets and dimensions.

Would be VERY helpful in building my bracket (maybe others too.)

Like your scrounging for the other bits too. You'll be in this for under 500 I bet. Maybe 1/2 that? Fine work. Thanks for sharing the pics - very helpful too.

TIA , and
Cheers - JIm
Nothing fast about this, it took me longer than I really had time for.

I do have some templates that I started but did not make all templates
necessary to reproduce these. I fit the driver side vertical bracket on
then applied the horizontal bracket and gussets and welded it on the
car to get the fit right. I my be able to post the templates for the flat
main bracket, left and right side, but the rest would be up to you, if
I still have them.



rtj,

Yes you can run these as manual units as well.




Riggs.
riggs 74 is offline   Reply w/quote Quick reply to this message
Old 01-03-2010, 10:38 PM   #6
vette427-sbc
DC Crew

vette427-sbc's Avatar

Posts: 1,037
Member #50341
Member since: Sep 2006
Location: Jersey shore

My Corvette(s)
'69 Coupe

Thanks: 3
Thanked 8 Times in 7 Posts
Looks great
I really like your driver and passenger side brackets- very clean.
I'd like to know how the grand am tie-rods work out for you, bump-steer wise

See? I told ya it wasnt too bad

Really nice job overall.
vette427-sbc is offline   Reply w/quote Quick reply to this message
'69 Vette- T56, Drysump'd 427SBC, 12pt chromo cage, RSRT front frame clip, custom C4 rear suspension, Teves MK60 ABS, lots of weight reduction. Drive it to the road course, beat on it and drive it home.

@AutoWorksNJ
Old 01-04-2010, 09:09 AM   #7
lsejlowe
DC Pit Crew

lsejlowe's Avatar

Posts: 10,260
Member #6680
Member since: Jan 2004
Location: Omaha, NE

My Corvette(s)
black '69 350/350 4spd

Thanks: 8
Thanked 63 Times in 59 Posts
great work, I like your brackets

Do they both bolt straight on without extra holes or just the driver's side? Are the shims under the rack mounts to get extra clearance around the pan?
lsejlowe is offline   Reply w/quote Quick reply to this message
Optimists think the glass is half full.
Pessimists think the glass is half empty.
Engineers realize it's twice as big as it needs to be.
Old 01-04-2010, 09:25 AM   #8
Metalkid
DC Crew

Posts: 1,137
Member #92641
Member since: Oct 2009
Location: Phoenix, AZ USA

My Corvette(s)
1978 Silver Anniversary Model #678

Thanks: 12
Thanked 52 Times in 51 Posts
Awesome fabrication werk!

Um, forgive my ignorance, but could someone explain to me the benefits of a rack & pinion system over the stock power steering system? I've always thought my 78 steering was amazingly tight (once I rebuilt everything). What are the advantages of the rack & pinion system, or "why would I want to do this mod?"

Thanks!
Metalkid is offline   Reply w/quote Quick reply to this message
Old 01-04-2010, 10:43 AM   #9
rtj

rtj's Avatar

Posts: 4,075
Member #52011
Member since: Oct 2006
Location: orlando fl usa

My Corvette(s)
75/502, C6 Z06, 70 ProStreet

Thanks: 4
Thanked 45 Times in 44 Posts
Quote:
Originally Posted by riggs 74 View Post


rtj,

Yes you can run these as manual units as well.




Riggs.
Thanks, looking forward to your "driving impressions."

For some reason, you made this look easier than some of the other posts, possibly since you studied the other threads before your effort.

This might go on the to-do list.
rtj is offline   Reply w/quote Quick reply to this message
Old 01-04-2010, 10:58 AM   #10
69MyWay
DC Crew

69MyWay's Avatar

Posts: 4,751
Member #2007
Member since: Aug 2003
Location: Clinton, IL

My Corvette(s)
Vetteless in the Midwest...at least for now

Thanks: 13
Thanked 99 Times in 76 Posts
69MyWay is offline   Reply w/quote Quick reply to this message
Old 01-04-2010, 12:22 PM   #11
vette427-sbc
DC Crew

vette427-sbc's Avatar

Posts: 1,037
Member #50341
Member since: Sep 2006
Location: Jersey shore

My Corvette(s)
'69 Coupe

Thanks: 3
Thanked 8 Times in 7 Posts
Quote:
Originally Posted by Metalkid View Post
Awesome fabrication werk!

Um, forgive my ignorance, but could someone explain to me the benefits of a rack & pinion system over the stock power steering system? I've always thought my 78 steering was amazingly tight (once I rebuilt everything). What are the advantages of the rack & pinion system, or "why would I want to do this mod?"

Thanks!
Quicker steering ratio and a more reliable modern power steering setup
vette427-sbc is offline   Reply w/quote Quick reply to this message
'69 Vette- T56, Drysump'd 427SBC, 12pt chromo cage, RSRT front frame clip, custom C4 rear suspension, Teves MK60 ABS, lots of weight reduction. Drive it to the road course, beat on it and drive it home.

@AutoWorksNJ
Old 01-04-2010, 04:38 PM   #12
riggs 74
DC Crew

riggs 74's Avatar

Posts: 1,301
Member #78208
Member since: Dec 2008
Location: ohio, springfield

My Corvette(s)
74 vette

Thanks: 16
Thanked 54 Times in 54 Posts
Vette427sbc,
The tie rod set as is should bring great results as far as minimal
bump steer. The tie rods run along the same angle as the lower control
arm, so I shouldn't see the toe change much, if at all with the
suspension travel.


Isejlowe,

Yes both support brackets are bolted through the original bolt locations,
I didn't want to weld any thing to the frame in case latter I go with
anther setup/system I can just on bolt everything and I wont have
to clean up any unwanted welding.
The shims are to lower and push it forward just a bit, When I built
the brackets I didn't get the rack location as close as I once thought
so the shims were the safest way to move it forward with out
having
to re-due the brackets.

rtj,
with the help and the existing post that are here once you get
a game plan together it not bad at all, the hardest part was getting
the angle right on the bracket.




I wont get to test this until spring but I will post my results.

Thanks for all the great feed back.

Riggs.
riggs 74 is offline   Reply w/quote Quick reply to this message
Old 01-08-2010, 07:28 PM   #13
riggs 74
DC Crew

riggs 74's Avatar

Posts: 1,301
Member #78208
Member since: Dec 2008
Location: ohio, springfield

My Corvette(s)
74 vette

Thanks: 16
Thanked 54 Times in 54 Posts
Center link Update

have made another center link for the tie rods to be able
to move with the suspension travel.


The tie rod mounting bolts are temporary, they will be replaced with 12 mm grade 8 bolts.





I also was able to take the shims out, that were behind the rack
on the mount, to close the distance on the steering stem to column,
this made the steering stem fit much better. I will have to dimple the
header at the lower u-joint and wrap the header in that area to
keep the heat away from the rack so it does not heat up the fluid.




I also like the tie rod angles, I believe bump steer shouldn't be a problem
for me.




I will update this latter as I am going to tear out the control arms and
install new bushing. When I do this I will check the suspension travel clearance
to make sure all is well.

Riggs.
riggs 74 is offline   Reply w/quote Quick reply to this message
Old 01-13-2010, 03:51 PM   #14
luera1
DC Crew

Posts: 10
Member #85690
Member since: May 2009
Location: Bay City, Texas

My Corvette(s)
1973 Stingray

Thanks: 0
Thanked 0 Times in 0 Posts
super job!

Awesome job man! Great write up too. How far does the rack stick out past the frame on the driver's side? Did you have to notch the motor mount frame for clearance? I am currently fabricating and measuring for my 73 stingray rack conversion.
(which has been inspired by the amazing talent found on this forum) and would appreciate any other pictures or measurements you may have of the main bracketry. Thanks again for the great write up!
luera1 is offline   Reply w/quote Quick reply to this message
Old 01-13-2010, 06:19 PM   #15
riggs 74
DC Crew

riggs 74's Avatar

Posts: 1,301
Member #78208
Member since: Dec 2008
Location: ohio, springfield

My Corvette(s)
74 vette

Thanks: 16
Thanked 54 Times in 54 Posts
luera1,
Thanks for the complement. No, I did not notch the motor mount
The rack sets about 3/4'' away from the motor mount frame section.
The rack protrudes out past the drivers side frame rail by less than
one inch.
I don't think this will be a problem with the tire rubbing it but
I won't know until I get the car back together, right now
I'm rebuilding the control arms.

I do have the main brackets trace onto a piece of cardboard
some where, I will have to find it and see about posting it. I don't
want to post it until I have the system back together and test it
out before I start posting info that my not be helpful, It will be a few
weeks before I get it back together and test it.

As soon as I get this completed I will do a follow up post.


I would like to add that this project, with these components has been
a very easy project to take on. You will need a welder, grinder,
drill and something to cut the steel with, I used a portable hand
held band saw. Clamps and straps are nice too to hold the rack
in place for measurements until you have the support brackets made
and bolted in.


I hope this helps,

Riggs.
riggs 74 is offline   Reply w/quote Quick reply to this message
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Corvette Forum : DigitalCorvettes.com Corvette Forums forums, you must first register.
Please enter your desired user name (12 CHARACTERS MAXIMUM), your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:
City / State / Country?
Where you live
What kind of Corvette(s) do you own?
This field is not required.
Insurance
Please select your insurance company (Optional)

Log-in


Thread Tools

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Powered by vBadvanced CMPS v3.2.2

All times are GMT -6. The time now is 11:07 PM.




Powered by vBulletin® Copyright ©2000 - 2019, Jelsoft Enterprises Ltd.
Garage Plus vBulletin Plugins by Drive Thru Online, Inc.
vBulletin Security provided by vBSecurity v2.2.2 (Pro) - vBulletin Mods & Addons Copyright © 2019 DragonByte Technologies Ltd.
2003-2011, DigitalCorvettes.com - All Rights Reserved
